Product Description(60W COFDM Wireless Video Transmitter with HDMI SDI and PTZ Control)
60W Long Range COFDM Wireless Video Transmitter with HDMI/SDI and RS232/RS485 PTZ Control
Product Introduction

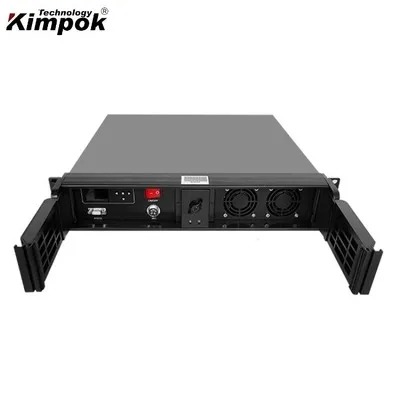

The KP-CM60H is a high-power COFDM wireless video and data transmitter developed by Kimpok Technology, designed for outdoor long-range communication in demanding environments. Equipped with 60W RF output power, H.264 video compression, and COFDM modulation, this transmitter ensures stable, low-latency, and high-definition video transmission even in NLOS (Non-Line-of-Sight) or fast-moving scenarios.
With built-in RS232/RS485 PTZ control, the KP-CM60H not only delivers reliable video signals but also provides seamless camera and gimbal control, making it ideal for UAVs, mobile command vehicles, and long-distance surveillance applications.
Key Features
- High-Power Transmission - 60W RF power for super long-range coverage.
- Stable COFDM Modulation - Ensures anti-multipath interference and reliable signals.
- 1080P HD Video - Supports high-definition real-time transmission with H.264 encoding.
- PTZ Control Integration - RS232/RS485 ports for remote PTZ camera operation.
- AES Encryption - User-defined AES128/256-bit encryption for secure communication.
- Multi-Environment Adaptability - Operates efficiently in NLOS, mobile, and urban conditions.
- Military-Grade Design - Rugged build with digital LCD configuration panel for easy setup.
Product Advantages
- Ultra-Long Distance Coverage - Ideal for UAVs, mobile-to-command centers, and vehicle-to-vehicle links.
- Strong Signal Reliability - Maintains stable video and data streams in dynamic environments.
- Flexible Configuration - Adjustable bandwidth and frequency for different mission requirements.
- Comprehensive Data Support - Integrates video, audio, and serial data transmission in one system.
- Fast Deployment - Easy installation with user-friendly LCD interface for quick parameter setting.
Applications
- UAV Long-Range Video & Data Transmission
- Mobile Vehicle-to-Command Center Communication
- Border and Coastal Surveillance
- Public Security and Emergency Response
- Military and Tactical Field Deployments
- Industrial Monitoring in Remote Areas
Technical Specifications
| Parameter | Specification |
| Voltage | DC28V |
| RF Power | 60W |
| Bandwidth | 2 / 2.5 / 4 / 8 MHz |
| Frequency (Video) | 550-600MHz (1MHz step, customizable) |
| Frequency (Data) | 150MHz |
| Modulation | COFDM 2K |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Video Resolution | 1080P/i & 720P/i |
| Video Coding | H.264 |
| Video Format | PAL / NTSC |
| Encryption | AES128 / 256 bits |
| Video Ports | HDMI, SDI, BNC, Analog |
| Data Ports | RS232 / RS485 |
| Dimensions | 490 × 450 × 90 mm |
| Weight | 16 kg |
| Configuration | Manual setting via LCD panel |
